Undistortion of Optical Coherence Tomographs of Percutaneous Implants

TNT members involved in this project:
Dipl. Math. Oliver Müller
Prof. Dr.-Ing. Bodo Rosenhahn

Problem

Optical Coherence Tomography1 (OCT) is a newly established noninvasive imaging technique which is used here for in vivo biocompatibility studies of percutaneous2 implants. A drawback of this technique is that the OCT scans are optical distorted. The distortion mostly depends on the optical refraction within the x-rayed material. Refraction correction of the OCT scans is an essential step towards further tasks like morphometric analysis of the implant--tissue interface. As modern OCT scanners are capable for near realtime image capturing with high image resolutions and therefore generate huge amounts of data, methods for automatic image processing are required.

Percutaneous Implant OCT Undistortion

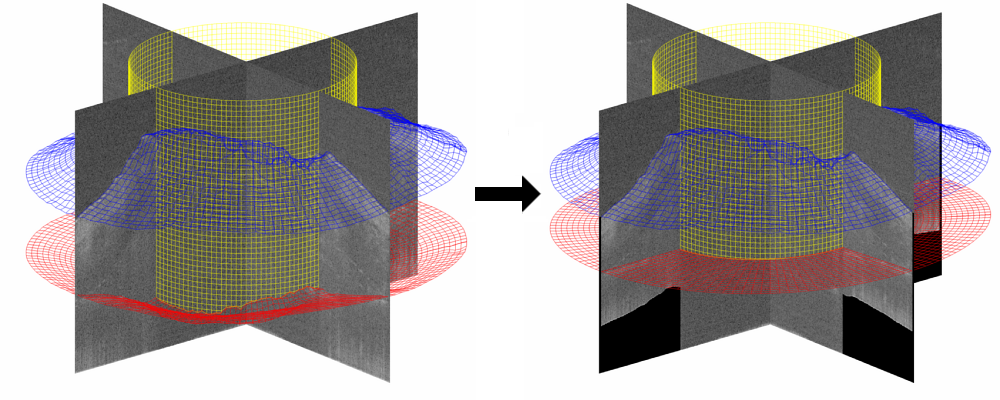

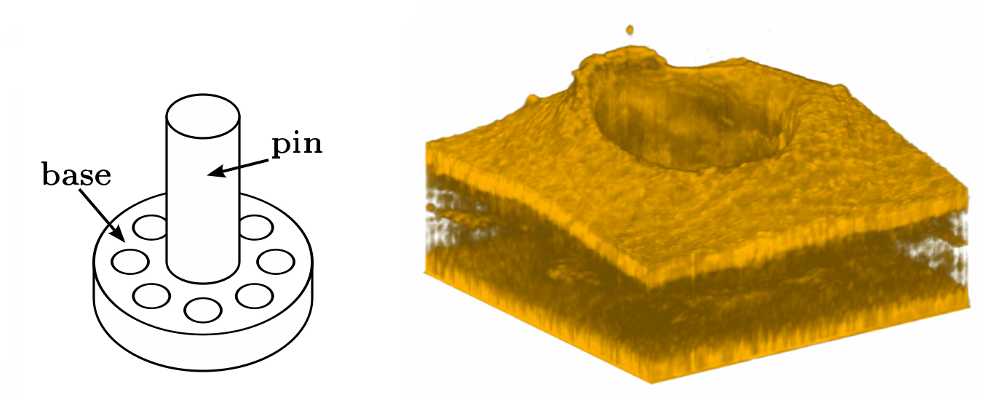

Figure 1: Model of a percutaneous implant and volume rendering of a skin tissue (the hole indicates the position of the implant pin) Figure 2: 3D segmentation (blue: skin surface, red: base contour, yellow: pin) and refractive undistortion

Goal

The goal of this project is to provide a fully automatic refractive undistortion framework of the OCT scans using model based 3D segmentation.

Approach

The first step involves the segmentation of the skin and percutaneous implant base using Markov random fields and a generalized Hough transform approach. In the second step, the amount of image distortion is estimated using a refractive distortion model. Model parameters are estimated by incorporating a-priori knowledge of the planar shape of the percutaneous implant base. Finally, the images are undistorted according to the refractive distortion model and the previously estimated model parameters.



In Dec. 4, 2011 our MICCAI article appeared as feature of the week in OCT-news!

References



1 Wikipedia: Optical coherence tomography
2 Percutaneous: through the skin

Publications

  • Journals
    • Sabine Donner, Oliver Müller, Frank Witte, Ivonne Bartsch, Elmar Willbold, Tammo Ripken, Alexander Heisterkamp, Bodo Rosenhahn, Alexander Krüger
      In situ optical coherence tomography of percutaneous implant-tissue interfaces in a murine model
      Biomedical Engineering/Biomedizinische Technik, De Gruyter, pp. 1-9, Karlsruhe, May 2013, edited by Dössel, Olaf
