Outdoor Human Motion Capture using Inverse Kinematics and von Mises-Fisher Sampling

IEEE International Conference on Computer Vision (ICCV 2011)

Gerard Pons-Moll, Andreas Baak, Juergen Gall, Laura Leal-Taixé, Meinard Mueller, Hans-Peter Seidel, and Bodo Rosenhahn


Abstract


Human motion capturing (HMC) from multiview image sequences constitutes an extremely difficult problem due to depth and orientation ambiguities and the high dimensionality of the state space. In this paper, we introduce a novel hybrid HMC system that combines video input with sparse inertial sensor input. Employing an annealing particle-based optimization scheme, our idea is to use orientation cues derived from the inertial input to sample particles from the manifold of valid poses. Then, visual cues derived from the video input are used to weight these particles and to iteratively derive the final pose. As our main contribution, we propose an efficient sampling procedure where hypothesis are derived analytically using state decomposition and inverse kinematics on the orientation cues. Additionally, we introduce a novel sensor noise model to account for uncertainties based on the von Mises-Fisher distribution. Doing so, orientation constraints are naturally fulfilled and the number of needed particles can be kept very small. More generally, our method can be used to sample poses that fulfill arbitrary orientation or positional kinematic constraints. In the experiments, we show that our system can track even highly dynamic motions in an outdoor setting with changing illumination, background clutter, and shadows.

Images, videos, data and code will be made available.
NOTE Page is under construction and some links might not work yet.

Video

(with voice over)

Downloads


Data
The challenging outdoor sequences used in the paper can be downloaded directly from here. The dataset consists of 8 sequences of 4 activities (walking, karate, soccer and basketball) performed by two different subjects. Additionally, we include background images to perform background substraction. This matlab demo script shows how to read and use the data in HMODB. It loads a mesh and a sequence and plots the 3D model with the sensor orientations in the first frame and the projection of the model into the first frame.

Walking Karate Soccer Basketball
sequences subject1.tar.gz subject2.tar.gz
Background Images Background_Images.tar.gz
meshes
and
projection matrices
InputFiles.tar.gz
orientation data PriorFiles.tar.gz
documents Documents.tar.gz

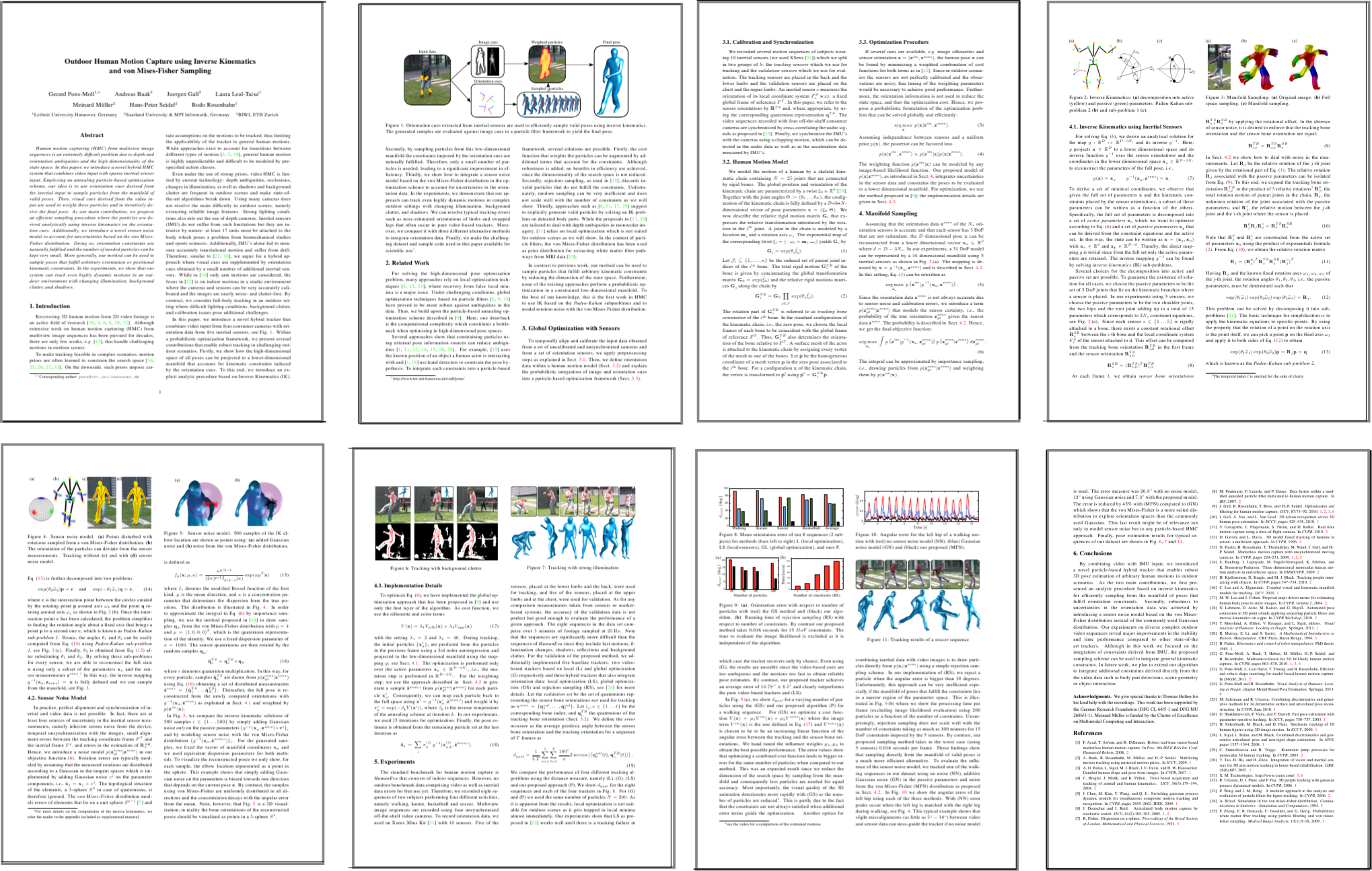

Paper
Video High quality video [.avi]
Refs Supplemental Material
